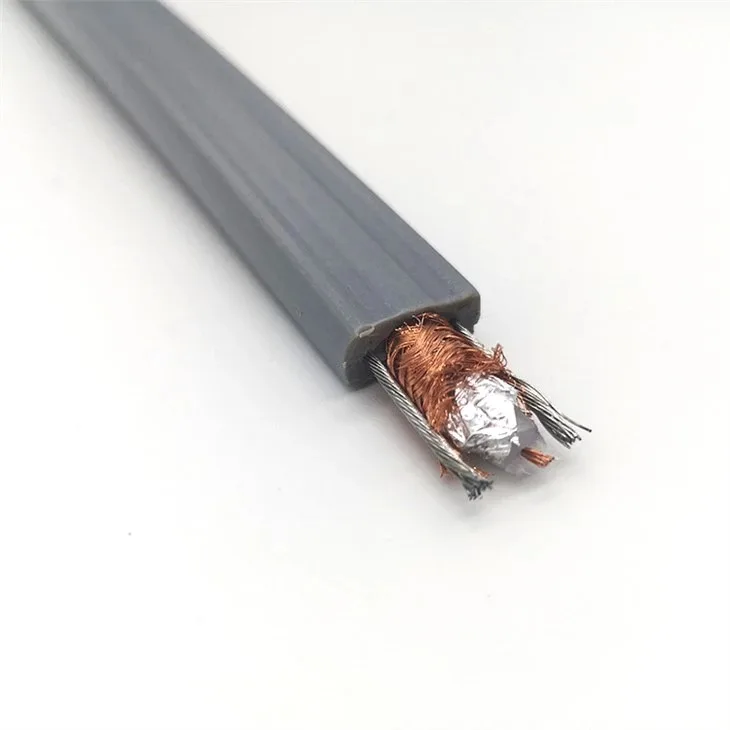

Elevator Traveling Cable with Coaxial 75-2 - Flat Construction, Two Steel Wires, 450/750 V

Name: Elevator Traveling Cable with Coaxial 75-2 - Flat Construction, Two Steel Wires, 450/750 V
Brand: PAIDE

Elevator Traveling Cables · Industrial Automation

Flat elevator traveling cable combining a 75-2 coaxial element with two steel strength wires, PVC sheath, 450/750 V rated voltage and 3000 V test voltage.

Request pricing → Email engineering

Customized per project: conductor cross-section and core count, shield type, sheath color, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product description

Applications:

Video transmission for elevator monitoring systems

Cable construction:

- 75 ohm coaxial

Conductor: finely stranded oxygen-free copper

Coaxial: 75-2 coaxial

Strength member: steel wires on both sides

Outer sheath: PVC

Color: grey

Rated voltage: 450/750 V

Test voltage: 3000 V

Minimum bending radius: 10 x cable thickness

The elevator video cable is a flat cable made up of a 75-2 coaxial element plus two steel wires. This type of cable is tough and light and can be used conveniently in equipment of all sizes. The flat cable resists heat radiation, cold, acids and alkalis. The ambient temperature range is -10 C to 70 C.
