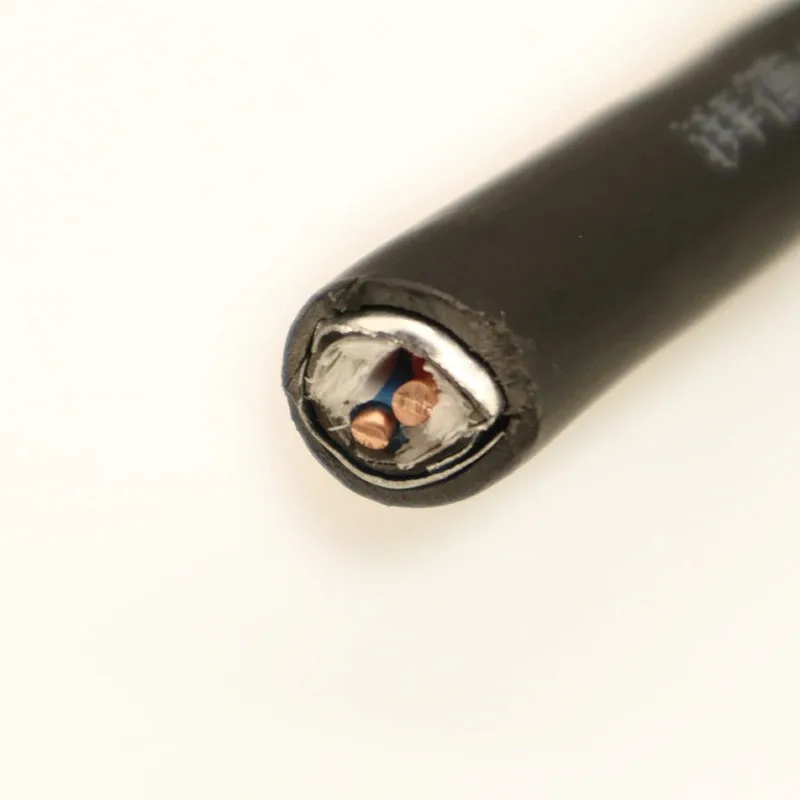

LSZH Power Cable 2×4.0mm² with Spiral Steel Tape Armour

Name: LSZH Power Cable 2×4.0mm² with Spiral Steel Tape Armour
Brand: PAIDE
SKU: Custom

Underwater Power Cables · Marine & Subsea

Custom

Two-core 4.0mm² cable with solid copper conductors, PE insulation, spiral steel tape armour and a low-smoke zero-halogen jacket, for on-board power.

Model

Custom

Specification

2 × 4.0mm²

Conductor

Solid oxygen-free copper

Insulation

Polyethylene

Armour

Spiral steel tape

Wrapping

Non-woven tape

Jacket

LSZH

Outer diameter

14.6 mm

Jacket colour

Black

Request pricing → Email engineering

Custom-built to project requirements: conductor cross-section and core count, shielding type, jacket colour, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product introduction

Application:

Power connection and control for on-board equipment.

Construction:

- 2 cores, 4.0mm²

Conductor: solid oxygen-free copper

Insulation: polyethylene

Armour: spiral steel tape

Wrapping: non-woven tape

Jacket: low smoke zero halogen (LSZH)

Colour: black

Diameter: 14.6 mm

LSZH stands for low smoke zero halogen, a halogen-free flame-retardant cable jacket material. Unlike PVC cables and cables made from other compounds, which release dense black smoke, toxic fumes and acidic gases in a fire, LSZH cable produces very low levels of smoke and toxic fume and no acidic gas.

The steel wire braid armour provides an explosion-protective function and protects the cable from environmental damage.

Custom versions in other specifications are also available.
