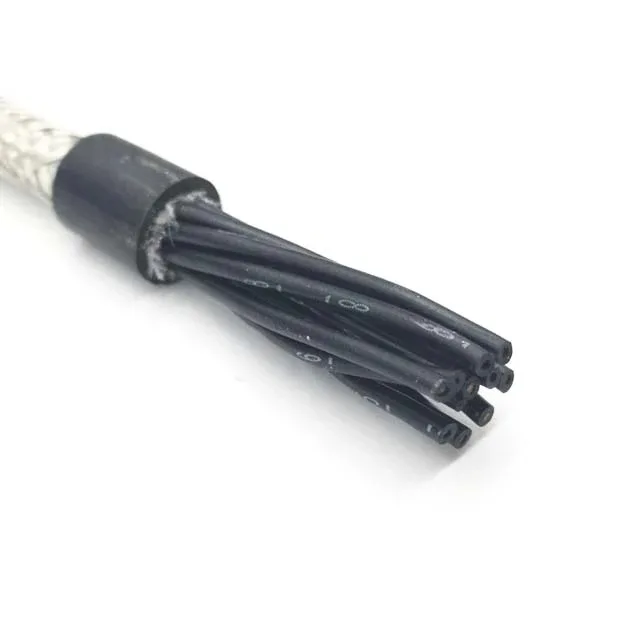

Drag Chain Cable 10×0.5mm² PVC Shielded 10.7mm

Name: Drag Chain Cable 10×0.5mm² PVC Shielded 10.7mm
Brand: PAIDE
SKU: On request

Drag Chain Cables · Industrial Automation

On request

Ten-core 0.5mm² drag chain cable with oxygen-free copper conductors, PVC insulation and jacket, tinned copper overall shield, 10.7mm OD, 5D/7.5D bending.

Request pricing → Email engineering

Customised to project: conductor size and core count, shield type, jacket colour, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product introduction

Drag chain cables are well suited to the machine tool industry, robotics and machine production, and anywhere high flexibility is required. These cables are suitable for flexible use under medium mechanical stress with free movement.

Cable construction:

- 10 cores 0.5mm² (20AWG)

Conductor: oxygen-free copper strands

Insulation material: PVC

Shield: tinned copper braid (overall shield, coverage ≤85%)

Wrapping: non-woven

Jacket material: PVC

Outer jacket color: black

Outer diameter: 10.7mm

Min. bending radius: fixed installation 5D, mobile installation 7.5D

Temperature range: fixed installation -15℃ to +70℃, mobile installation -5℃ to +70℃
