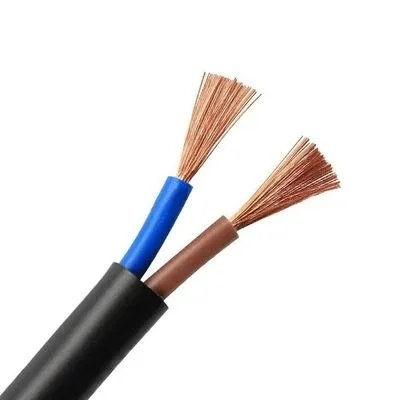

Rubber Sheathed Cable YC YCW H07RN-F H05RN-F 450/750 V

Product overview

Applications:

These tough rubber-sheathed cables are well suited to outdoor and wet conditions, for high-power appliances, machinery and equipment, and the main power supply of industrial and mining enterprises. H05RR-F is ideal for light hand-held and workshop tools, while H07RN-F is better suited to heavy-duty equipment at increasingly high stress levels.

Cable types: YC YCW H07RN-F YZ YZW H05RN-F H05RR-F

Cable specification:

Conductor: stranded oxygen-free copper

Insulation: rubber compound

Sheath: rubber compound

Color: black or other colors (optional colors)

Voltage: 450/750V, 300/500V

Core count &

Cross-section per conductor mm²

Outer diameter [mm]

Copper index (kg/km)

Weight (kg/km)

2×2.5

10.0-13.2

48

178

2×4

11.5-15.0

77

250

2×6

13.0-17.0

116

329

2×10

18.0-22.5

192

588

2×16

20.0-26.0

307

813

2×25

24.5-31.0

480

1157

3G 1

8.5-11.0

29

112

3G 1.5

9.5-11.5

43

158

3G 2.5

11.0-13.5

72

217

3G 4

12.5-16.0

115

299

3G 6

14.0-18.5

173

408

3G 10

19.0-24.5

288

717

3G 16

22.0-28.0

461

1010

4G 2.5

12.0-15.6

96

270

4G 4

14.1-18.0

154

374

4G 6

16.0-20.1

230

516

4G 10

21.0-26.6

384

900

4G 16

23.9-30.0

614

1255

4G 25

29.0-37.0

960

1847

4G 35

33.0-41.0

1344

2395

4G 50

37.8-47.6

1920

3285

5G 2.5

13.5-17.0

120

330

5G 4

15.0-20.0

192

467

5G 6

18.0-22.5

288

641

5G 10

23.0-30.0

480

1110

5G 16

26.5-33.6

768

1566

5G 25

32.2-40.7

1200

2293

5G 35

37.0-46.0

1680

2685

5G 50

42.6-47.3

2400

3951
