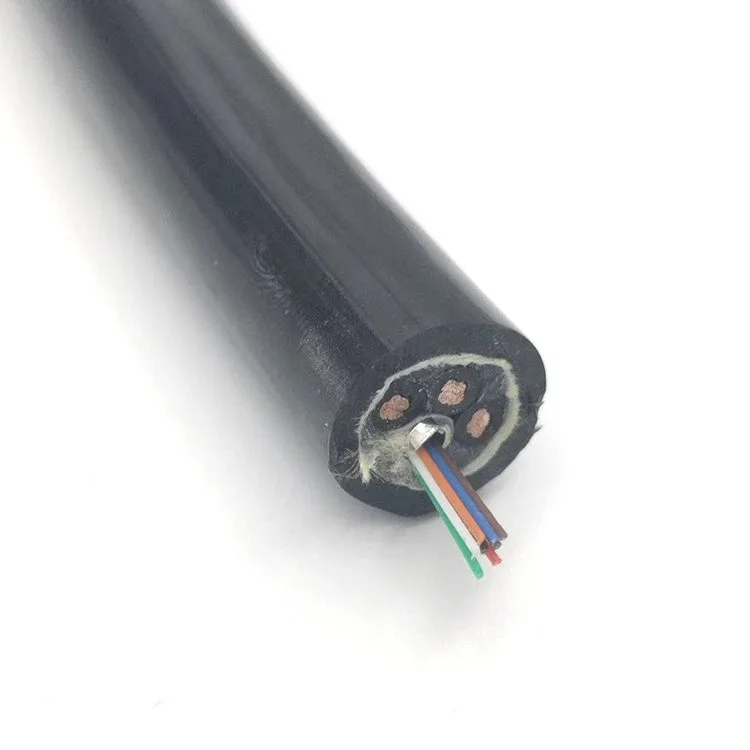

3×2.0 mm² + 8-Core Single-Mode Hybrid Fibre and Power Underwater Cable, 15.1 mm

Name: 3×2.0 mm² + 8-Core Single-Mode Hybrid Fibre and Power Underwater Cable, 15.1 mm
Brand: PAIDE

Underwater Power Cables · Marine & Subsea

3×2.0 mm² power cores plus 8 single-mode fibres in one cable, with a steel-armoured fibre unit, Kevlar strength member and PUR sheath, 15.1 mm OD.

Request pricing → Email engineering

Project-specific customisation is available: conductor cross-section and core count, shield type, sheath colour, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product introduction

Applications:

Offshore oil and gas

Renewable energy subsea systems

Defence equipment systems

Offshore equipment systems

ROV and AUV systems

Underwater cameras

Video and lighting systems

Subsea seismic systems

Diving equipment systems

Construction:

- 3 cores 2.0 mm²

- 8 single-mode fibres

Conductor: multi-strand finely stranded oxygen-free copper

Fibre: single-mode fibre

Fibre protection: steel armour

Strength member: Kevlar braid

Insulation: polyethylene

Outer sheath: PUR

Colour: black

Outer diameter: 15.1 mm

Temperature rating: -30 to 105 °C

Polyurethane cable, abbreviated PUR cable, is halogen-free, flame retardant and has higher mechanical and chemical resistance, which makes it suitable for harsh environments.

Our underwater cable range uses polyurethane as a high-performance sheath material while retaining the flexibility needed for underwater applications that involve frequent or continuous flexing.

If no suitable cable is available for your application requirements, we also recommend a custom cable built to your full specification.
