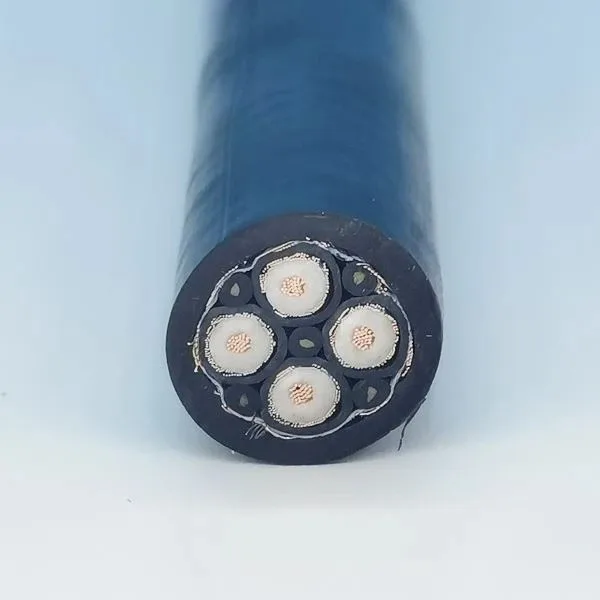

4 Core Underwater RG59 Coaxial Cable 4×75Ω 11.7mm PUR

Name: 4 Core Underwater RG59 Coaxial Cable 4×75Ω 11.7mm PUR
Brand: PAIDE
SKU: On request

Underwater Power Cables · Marine & Subsea

On request

Four-core 75Ω RG59 coaxial cable for underwater video transmission: tinned copper braid, PUR jacket, 11.7mm outer diameter, -30℃~90℃.

Request pricing → Email engineering

Customised to project: conductor size and core count, shield type, jacket colour, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product introduction

4-core underwater RG59 coaxial cable

Application:

Video transmission for underwater use.

Cable construction:

- 4-core 75Ω coaxial

Coaxial: RG59

Shield: tinned copper braid (coverage ≤85%)

Outer jacket: PUR

Jacket color: black

Outer diameter: 11.7mm

Temperature range: -30℃~90℃

Properties: oil resistance, flame retardancy, hydrolysis resistance, resistance to bacteria and UV.

A coaxial cable is a transmission line used to carry high-frequency electrical signals with low loss. Compared with other types of radio-frequency transmission line, one advantage of the coaxial construction is that, in an ideal coaxial cable, the electromagnetic field of the transmitted signal exists only in the space between the inner and outer conductors. This allows coaxial cable to be installed next to metal objects such as cable trays without the power losses found in other types of transmission line. Coaxial cable also protects the signal from external electromagnetic interference.

The cable is suitable for underwater radio-frequency transmission. If additional components are required, contact us and we will provide a design to your requirements.
