Aquaculture and Fish Farm Camera Cable, 3 UTP 24AWG

Name: Aquaculture and Fish Farm Camera Cable, 3 UTP 24AWG
Brand: PAIDE

Underwater Power Cables · Marine & Subsea

Abrasion-resistant aquaculture and camera cable with three UTP 24AWG pairs, a Kevlar strength member rated 50 kg, PUR sheath and 5.5 mm outer diameter.

Request pricing → Email engineering

Custom-built to project: conductor cross-section and core count, shielding type, sheath color, length and print marking can be adjusted to the working conditions; technical parameters are subject to the specification file confirmed by both parties.

Product introduction

Applications:

Underwater signal transmission and power supply for the aquaculture industry.

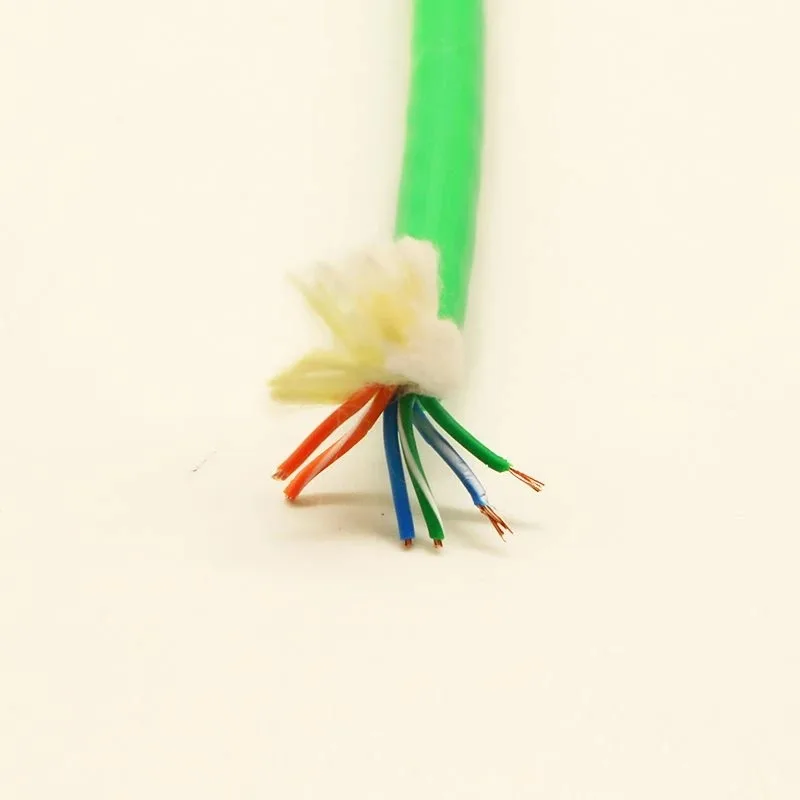

Product construction:

- 3 UTP (unshielded twisted pair) 24AWG (0.2 mm²)

Conductor: oxygen-free copper strands

Insulation: polyethylene

Wrapping: non-woven fabric

Strength member: Kevlar filler (50 kg)

Outer sheath: PUR

Color: green

Outer diameter: 5.5 ±0.3 mm

Aquaculture cable is an abrasion-resistant marine cable used by fish farmers worldwide. It is used to supply power to culture cages, underwater lights and other offshore installations, and between them.

This green cable is made from selected materials and is designed for use in extreme weather conditions. In undisturbed installations it has a long expected service life. If the cable has to be replaced, this is usually due to physical damage rather than wear. The cable needs no conduit or pipe; it can be installed directly into the sea.

The outer sheath is made of highly abrasion-resistant PU (polyurethane) and encloses the individual conductor insulations. This construction makes the cable very robust and protects the copper from wear.
