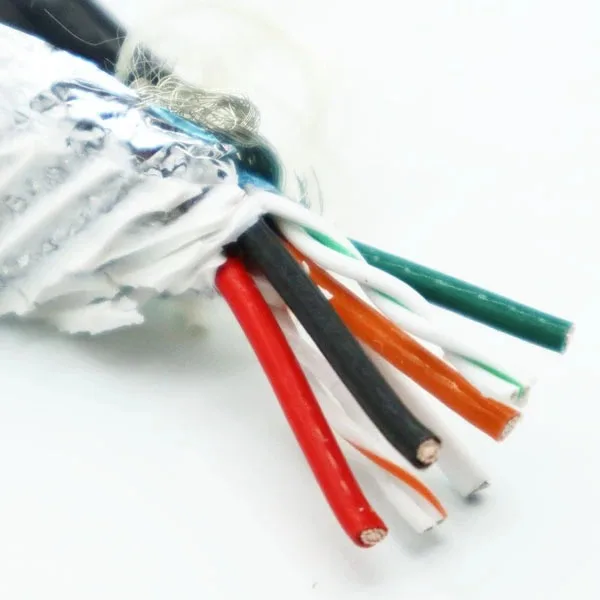

PAIDECABLE Gel-Filled Subsea Umbilical Cable, 1-60 Cores
Underwater Power Cables · Marine & Subsea
Gel-filled subsea umbilical of 1 to 60 cores with PE, TPEE or FEP insulation, optional coaxial units, PUR sheath and 100-2000 kg tensile strength.
Custom-built to project: conductor cross-section and core count, shielding type, sheath color, length and print marking can be adjusted to the working conditions; technical parameters are subject to the specification file confirmed by both parties.
Product introduction
For subsea applications.
Specification: 1-60 cores.
Core insulation: PE/TPEE/FEP
Coaxial: RG59/RG6 and others
Color: to order
Filler: water-blocking gel
Sheath: PUR
Tensile strength: 100 kg-2000 kg (or to order)
Temperature range: -30 °C to 105 °C
Voltage: 300/500 V
Properties: oil resistant, flame retardant, hydrolysis resistant, anti-bacterial, UV resistant
