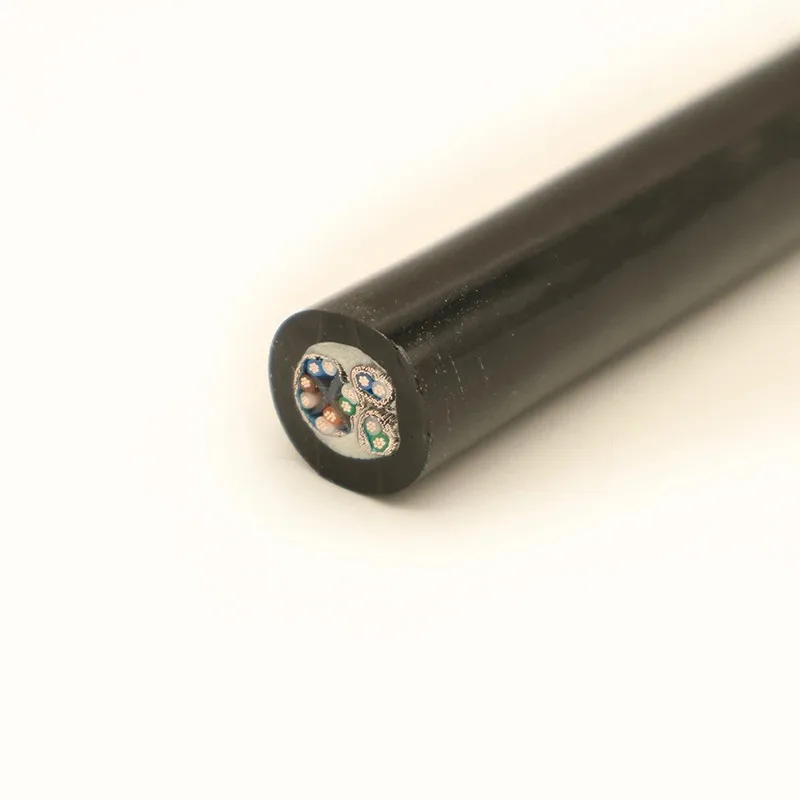

Umbilical Cable, STP CAT6A + 2×2×24AWG Twisted Pairs, PUR, 10.9mm

Name: Umbilical Cable, STP CAT6A + 2×2×24AWG Twisted Pairs, PUR, 10.9mm
Brand: PAIDE

Underwater Power Cables · Marine & Subsea

High-watertight, torque-balanced multi-core umbilical with a shielded CAT6A unit and two 24AWG shielded pairs for ROV power and data, 10.9mm OD.

Request pricing → Email engineering

Supports project-specific customisation: conductor cross-section and core count, shielding type, sheath colour, length and print legend can be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product introduction

High-watertight, torque-balanced multi-core hybrid cables are supplied for ships, offshore oil platforms and deep-sea resource exploration, and for underwater vehicles that carry both data and power, whether in fixed systems or in mobile systems where the vehicle is towed through the water above the seabed.

Construction:

- STP CAT6 (4*2*23AWG)

- 2 × 24AWG shielded twisted pairs (0.2mm²)

Conductor: oxygen-free copper stranded wire

Insulation: polyethylene

Wrapping: non-woven fabric

Shield: tinned copper braid and aluminium foil

Outer sheath: PUR

Colour: black

Outer diameter: 10.9mm

A water-blocking cable is an abrasion-resistant cable suitable for a range of outdoor environments. It is used for power supply between outdoor and indoor areas, and between underwater and land installations.

The cable is made from quality materials and is designed for use in extreme weather conditions. In an undisturbed installation its expected service life is long; where a cable has to be replaced, this is usually due to physical damage rather than wear.

The outer sheath is made of highly abrasion-resistant PU (polyurethane) and surrounds the individual conductor insulations. This construction makes the cable very robust and protects the copper from wear.
