Underwater Cable 3×1.5 mm² Shielded, PUR Sheath 3.5 mm, OD 13.5 mm

Name: Underwater Cable 3×1.5 mm² Shielded, PUR Sheath 3.5 mm, OD 13.5 mm
Brand: PAIDE

Underwater Power Cables · Marine & Subsea

Three-core 1.5 mm² oxygen-free copper cable, PE insulation, aluminium foil plus 85% tinned copper braid shield and a heavy PUR sheath up to 3.5 mm.

Request pricing → Email engineering

Built to project order: conductor cross-section and core count, shield type, sheath colour, length and print legend can all be adapted to the working conditions; technical parameters are subject to the specification document confirmed by both parties.

Product introduction

Applications:

Power supply and signal transmission for underwater equipment.

Construction:

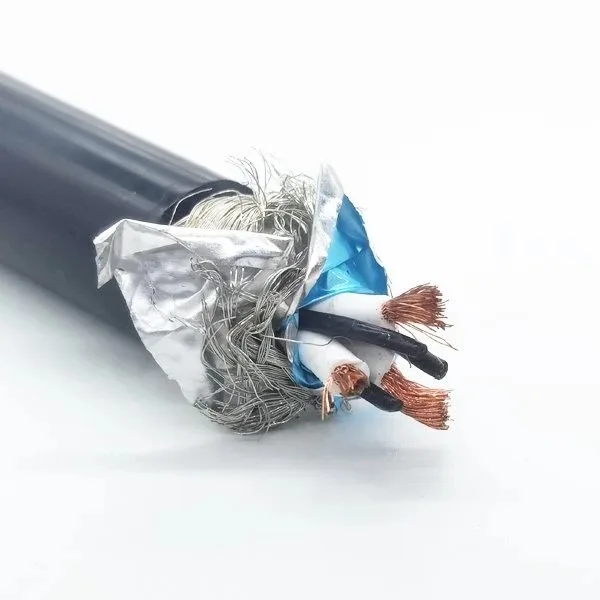

- 3 cores 1.5 mm²

Conductor: finely stranded oxygen-free copper

Insulation: polyethylene

Shield: aluminium foil, tinned copper braid (85%)

Outer sheath: PUR

Colour: black

Diameter: 13.5 mm

Temperature rating: -30 to +105 °C

This cable has a custom heavy sheath, with a sheath thickness of up to 3.5 mm, to suit harsh environments.

Polyurethane cable is abbreviated as PUR cable; it is halogen-free and flame retardant and offers higher mechanical and chemical resistance, which makes the cable suitable for harsh environments.

Our underwater series uses polyurethane as a high-performance sheath material while keeping the cable flexible, to suit underwater applications that require frequent or continuous bending.

If no standard cable meets your application requirements, we also recommend a cable customised to all of your requirements.
