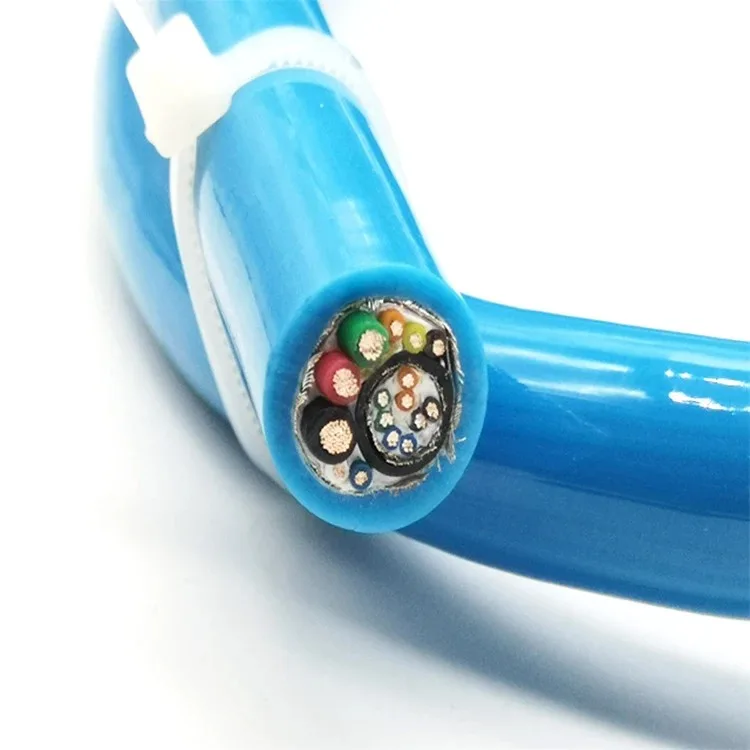

Underwater Hybrid Cable 1×4mm²+2×2.5mm²+5×0.34mm²+4×2×0.34mm²

Name: Underwater Hybrid Cable 1×4mm²+2×2.5mm²+5×0.34mm²+4×2×0.34mm²
Brand: PAIDE

Underwater Power Cables · Marine & Subsea

Gel-filled subsea hybrid cable with 1×4 mm², 2×2.5 mm² and 5×0.34 mm² cores plus four twisted pairs, TPEE insulation, blue PUR sheath, 14.8 mm.

Request pricing → Email engineering

Custom engineering is available: conductor cross-section and core count, shielding type, sheath color, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product overview

Applications:

Ø Offshore oil and gas

❖ Renewable energy subsea systems

Ø Defense equipment systems

Ø Offshore equipment systems

ROV and AUV systems

Ø Subsea cameras

Ø Video and lighting systems

❖ Seabed seismic systems

❖ Diving equipment systems

Product construction:

- 1 core, 4 mm²

- 2 cores, 2.5 mm²

- 5 cores, 0.34 mm²

- 4 twisted pairs, 0.34 mm²

Conductor: stranded tinned copper

Shield: tinned copper braid (≤80%) and aluminum foil

Filler: gel-filled + aramid

Insulation: TPEE

Outer sheath: PUR

Color: blue

Outer diameter: 14.8 mm

Temperature class: -30~105℃

Polyurethane cable is referred to as PUR cable; it is halogen-free and flame retardant and offers higher mechanical and chemical resistance, which makes the cable suitable for harsh environments.

Our subsea range uses polyurethane as a well-performing sheath material while keeping the cable flexible for subsea applications that require frequent or continuous bending.

This is a gel-filled cable; the gel is added over the braided shield or extruded on top of the foil shield. Because it is a gel it tends to flow and fill any gap or opening that appears, which makes it effective for water blocking and long-term protection of subsea cables.

If no suitable cable is available for your application, we also recommend a cable built to your full requirements.
