Underwater Hybrid CAT5 Power Cable STP CAT5E + 2×0.5mm² 10.1mm

Name: Underwater Hybrid CAT5 Power Cable STP CAT5E + 2×0.5mm² 10.1mm
Brand: PAIDE
SKU: On request

Underwater Power Cables · Marine & Subsea

On request

Watertight hybrid cable combining STP CAT5E (4×2×26AWG) with two 20AWG power conductors in a 10.1mm PUR jacket, for subsea data and power links.

Request pricing → Email engineering

Customised to project: conductor size and core count, shield type, jacket colour, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product introduction

We supply highly watertight, torque-balanced multi-core hybrid cables for vessels, offshore oil platforms and deep-sea resource exploration, including underwater vehicles that carry both data and power, whether in fixed systems or mobile systems, i.e. when the vehicle is towed through the water over the seabed.

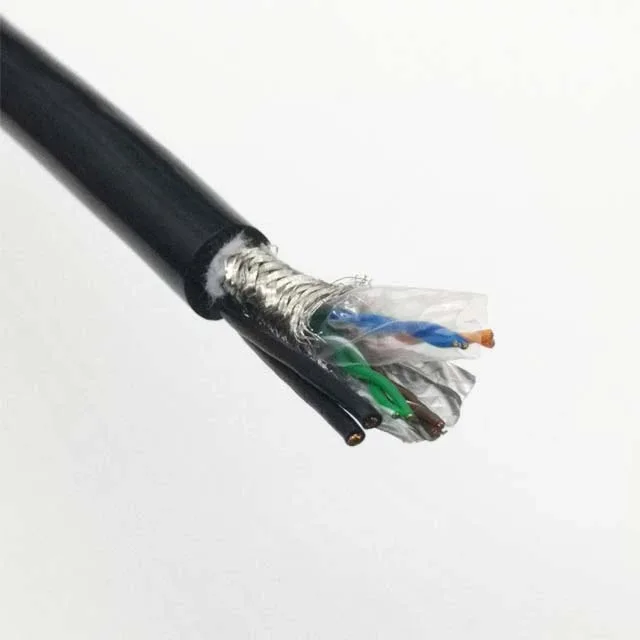

Cable construction:

- STP CAT5E (4*2*26AWG)

- 2 conductors 20AWG (0.5mm²)

Conductor: oxygen-free copper strands

Insulation: polyethylene

Wrapping: non-woven

Shield: tinned copper braid and aluminium foil

Outer jacket: PUR

Color: black

Outer diameter: 10.1±0.5mm

Waterproof cable is a watertight, abrasion-resistant cable for a range of outdoor environments. It is used for power supply between outdoor and indoor installations, and between underwater and onshore installations.

The cable is made from high-grade materials and designed for use in extreme weather conditions. In undisturbed installations its expected service life is long. If the cable has to be replaced, this is usually due to physical damage rather than wear.

The outer jacket is made of highly abrasion-resistant PU (polyurethane) and encloses the individual conductor insulations. This construction makes the cable very robust and protects the copper from abrasion.
