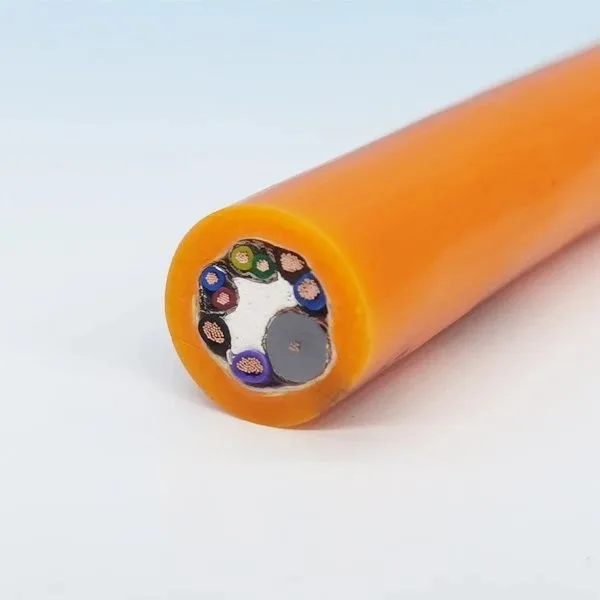

Underwater Robot Inspection Cable 4×1.0 + 2×2×0.5 ATS + 75-5
Underwater Power Cables · Marine & Subsea
Underwater and pipeline robot inspection cable combining 4 × 1.0 mm² power cores, two shielded 0.5 mm² pairs and a 75-5 coaxial unit in a 15 mm PUR sheath.
Product overview
For underwater and pipeline robot applications.
Specification: 4*1.0+2*2*0.5ATS+75-5
Core insulation: PE
Shielding: tinned copper braid, aluminium foil (signal cores)
Colour: orange
Sheath: PUR
Cable diameter: 15 mm
Temperature range: -30 °C to +105 °C
Features of our underwater cables:
Durability:
Designed to withstand harsh marine environments, including salt-water corrosion, water pressure and potential impact from marine life or vessel traffic.
Flexibility
: our cables are highly flexible, ensuring easy installation and routing around seabed obstacles.
Environmental resistance
: our cables resist temperature fluctuations, UV exposure and the chemical attack of seawater.
Long service life
: with correct installation and maintenance, our cables achieve a very long service life, often exceeding several decades.
Customisability
: we can customise cables to specific requirements such as length, specification, material type and other conditions.
