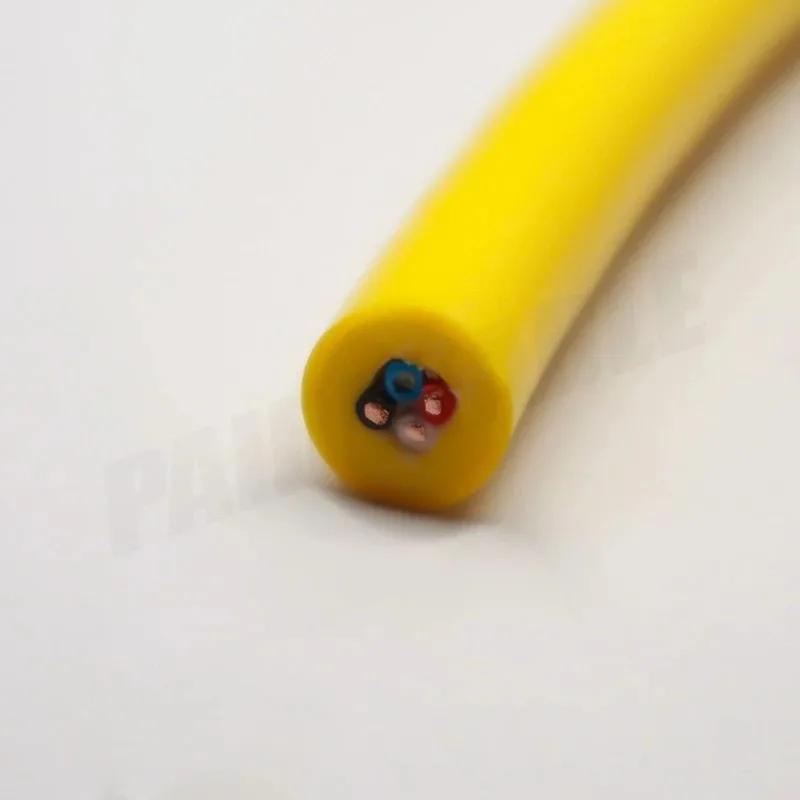

PDK81602-3×0.75+2SMF Neutrally Buoyant ROV Cable 500 m

Product overview

This dedicated subsea cable is designed for demanding seabed applications that need reliable power, data transmission and inherent buoyancy. Its robust construction ensures stable performance in challenging aquatic environments.

Key features:

Outstanding buoyancy: the distinctive double-layer polyurethane (PUR) sheath, made up of a foamed PUR layer and a solid PUR layer, provides significant positive buoyancy. This design helps the cable float or hold a specific depth in water, reducing deployment weight and stress.

Robust construction and high tensile strength: the double-sheath design increases durability and gives a tensile strength of 300 kg, so the cable withstands pull during installation and operation.

Outstanding material properties: polyurethane (PUR) provides excellent abrasion resistance, very good resistance to oil and grease, hydrolysis resistance and good flexibility even at low temperature. This ensures long-term reliability and protection against harsh subsea conditions.

Integrated conductors: the cable combines power and data transmission in one component:

3*0.75: provides robust power conductors.

2 single-mode fibers: for high-speed data and video transmission.

Technical specifications:

Model type: PDK81602-3×0.75+2SMF

Tensile strength: 300 kg (LCP filler)

Cable sheath: PUR foam + PUR double sheath

Cable diameter: 11.8±0.5 mm

Rated voltage: 300/500V

Rated temperature: -30-90℃

Rated depth: 500 m

Applications:

Well suited to a wide range of subsea applications, including:

Remotely operated vehicles (ROV)

Autonomous underwater vehicles (AUV)

Subsea sensing and instrumentation platforms

Marine research equipment

Marine monitoring systems

This buoyant cable combines durability, performance and function for all your subsea connection needs.
