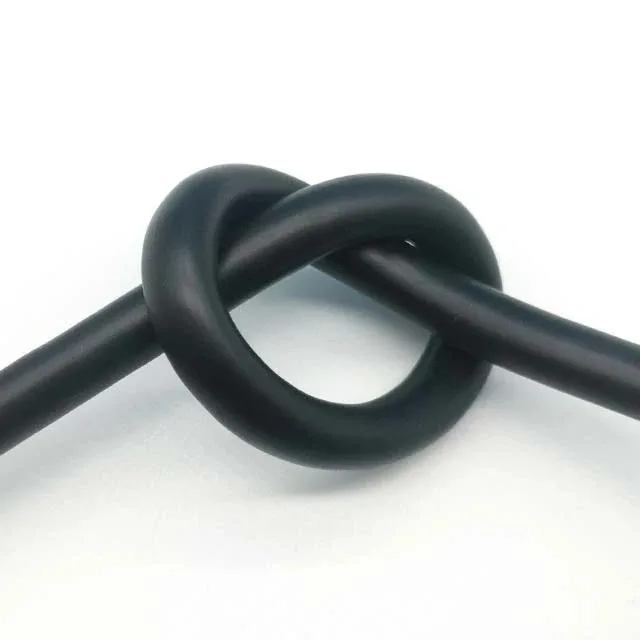

High-Flex Industrial Cat5 Drag Chain Cable - 4x2x24AWG, 100 Ohm, 5D Bending

Name: High-Flex Industrial Cat5 Drag Chain Cable - 4x2x24AWG, 100 Ohm, 5D Bending
Brand: PAIDE

Drag Chain Cables · Industrial Automation

High-flex Category 5 drag chain cable with 4 twisted pairs of 24AWG bare copper, HDPE insulation, nitrile or PUR sheath, 100 ohm impedance, 5D bending.

Request pricing → Email engineering

Customized per project: conductor cross-section and core count, shield type, sheath color, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product description

This industrial network cable is a Category 5 cable, designed and manufactured to drag chain cable practice.

Applications:

Drag chain network cable is suitable for electrical instruments, electronic equipment and automation devices. It resists electromagnetic interference effectively. Thanks to the special design, the cable is suitable for frequent movement and frequent bending.

Cable construction:

- 4 twisted pairs 24AWG

Conductor material: pure oxygen-free bare copper

Conductor construction: multi-strand, (±0.004) mm

Stranded diameter: 0.57 mm

Insulation material: HDPE (high-density polyethylene)

Insulation diameter: 0.95 ±0.05 mm

Insulation colors: orange/white-orange, green/white-green, blue/white-blue, brown/white-brown

Sheath material: nitrile elastomer / polyurethane

Temperature rating: -20 C to +80 C (drag chain versions customizable from -60 C to +105 C)

Characteristic impedance: 100 ±15 ohm

Bending radius: 5D
