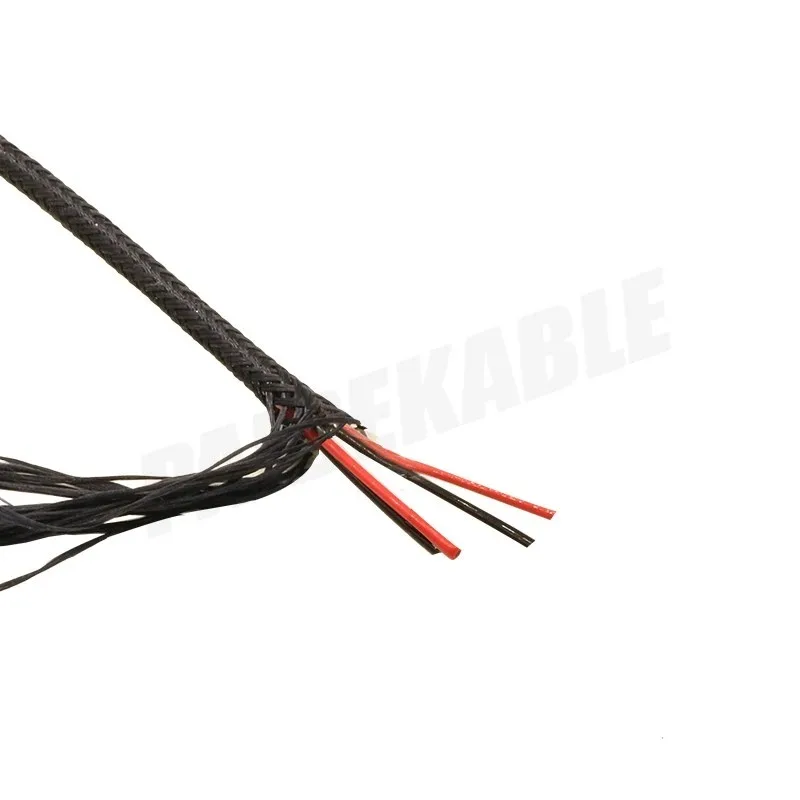

PDK41301-4×20AWG Tethered Drone Cable, 1500–2000 VDC, OD 4.6 mm
Tethered Drone Cables · Tethered Systems
Tethered drone cable with two 20AWG pairs of silver-plated copper for 10–15 A at 1500 VDC, aramid sheath, OD 4.6 mm, 34.6 g/m, -55 to +150 °C.
Product introduction
PAIDE provides durable, lightweight hybrid cable solutions for tethered drones. This lets the aircraft fly higher, see further and do more than before.
The cable contains 2 pairs of 20AWG conductors that can supply a continuous 10–15 A at 1500 VDC. The cable is designed for a high rated voltage of 2 kV.
Model: PDK41301-4×20AWG
Cable construction:
- 2 pairs 20AWG
Insulation material: high-quality composite material
Conductor: silver-plated copper
Sheath: high-strength aramid fibre
Outer sheath colour: black
Temperature range: -55 to +150 °C
Outer diameter: 4.6 ± 0.3 mm
Weight: 34.6 ± 1.0 g per metre
Rated current: 10–15 A
DC resistance: 16.2 Ω/km
Rated voltage: 1500–2000 VDC
Features: good environmental adaptability, resistance to salt spray, heat and humidity, temperature, low pressure, UV and rain.
If this does not meet your requirements, you can contact us and we will provide a new design free of charge.
We will provide you with a cost-effective tethered drone cable.
