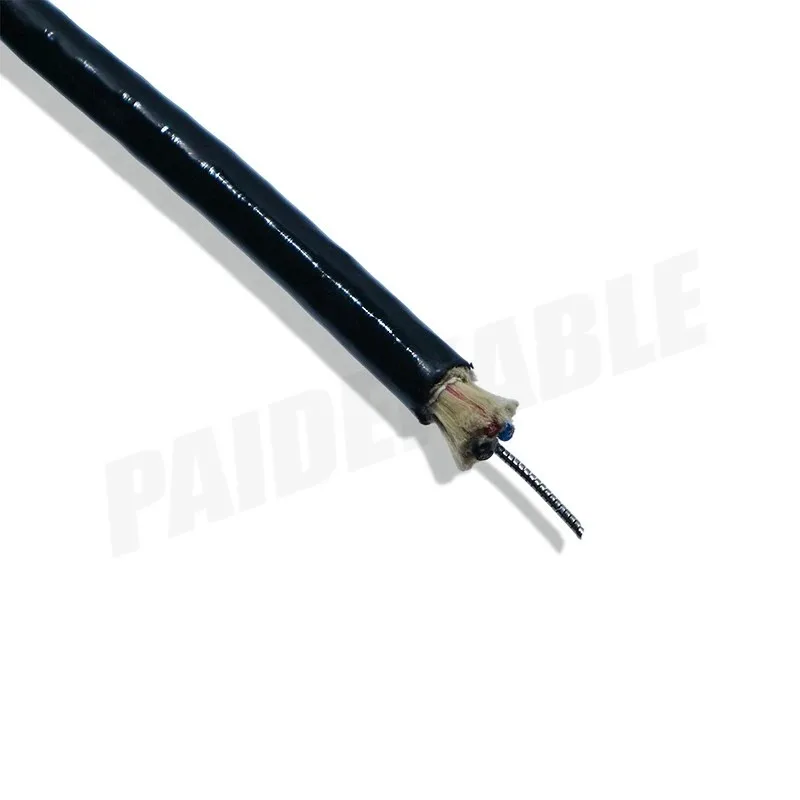

PDK41604 3×0.75 mm² + 2SMF 1000 kg Aerostat Tethered Cable, 750 VDC

Product introduction

This product is a multifunctional tether designed for aerostats such as tethered balloons, airships and high-altitude observation platforms, combining high-strength mechanical load-bearing capacity with stable power transmission.

The cable provides a breaking force of 1 t while keeping weight at only about 75 g per metre.

Technical data:

Model: PDK41604-3×0.75+2SMF

Conductor construction:

- 3 cores 0.75 mm² high-quality lightweight copper alloy

Breaking force: above 1000 kg

Outer diameter: 7.2±0.3 mm

Cable weight: 75±3.0 g per metre

Rated current: 7-10 A (continuous load)

Rated voltage: 750 VDC

DC resistance: 25 Ω/100 m

Operating temperature range: -40 °C to 105 °C

Ideally suited to:

Aerostats for continuous surveillance and communication

Balloons for scientific research and atmospheric monitoring

Tethered balloons for promotions and events

Any application requiring a reliable, high-strength tether where weight is critical.

It meets the requirements of tethered and moored aerostats, high-altitude equipment power supply and signal transmission at the same time.

It is a suitable choice for weather monitoring, communication relay and security surveillance.
