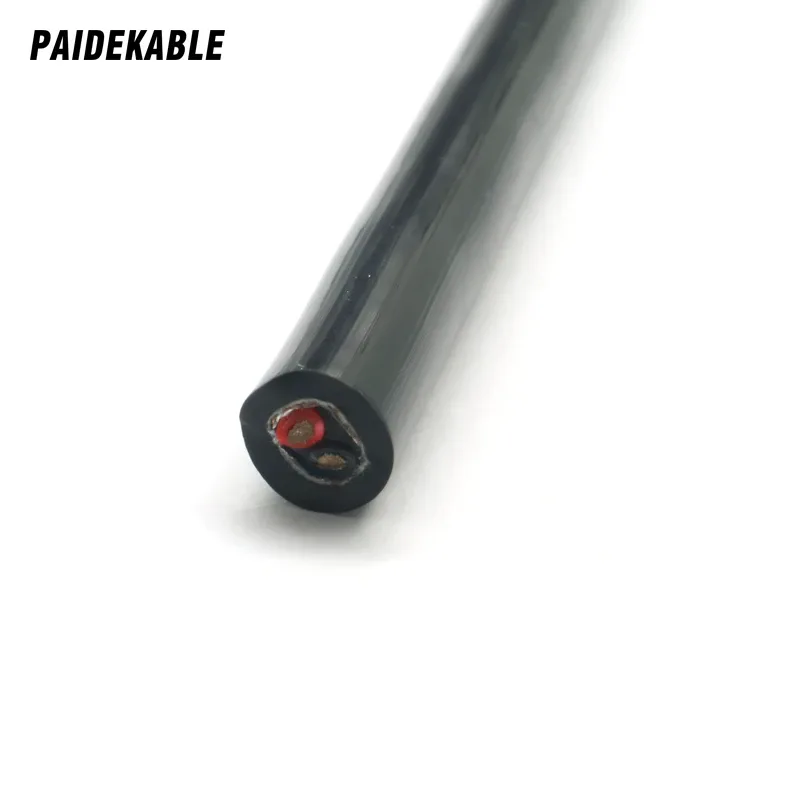

PDK81301-2x1.0 Underwater Power Cable, 2x1.0 mm2, Tinned Copper, PUR Sheath, 5 MPa

Name: PDK81301-2x1.0 Underwater Power Cable, 2x1.0 mm2, Tinned Copper, PUR Sheath, 5 MPa
Brand: PAIDE

Underwater Power Cables · Marine & Subsea

Power-only watertight subsea cable, 2x1.0 mm2 tinned copper, polypropylene insulation, polyether PUR sheath, 8 mm OD, 5 MPa water pressure, -40 to 105 C.

Request pricing → Email engineering

Custom manufacturing is available for each project: conductor cross-section and core count, shielding type, sheath colour, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product introduction

This product is a power-only watertight (submersible) cable designed for demanding subsea and marine power applications, including ROV thrusters, subsea pump systems, high-power lighting and offshore production equipment. It provides low-voltage power transmission with proven watertight integrity, together with good flexibility, kink resistance and long-term seawater durability. With no integrated signal cores, the cable is optimised for applications dedicated to power transmission under extreme hydrostatic pressure.

Model

PDK81301-2*1.0

Specification

2*1.0

Conductor material

Tinned copper strands

Insulation material

Polypropylene

Sheath material

Polyether polyurethane (PUR)

Sheath outer diameter (mm)

8 ± 0.3 mm

Sheath colour

Black

Temperature range

-40 to 105 °C

Water pressure resistance

5 MPa

The PUR (polyether polyurethane) sheath provides high mechanical toughness: high cut and tear resistance, good low-temperature flexibility, and resistance to hydrolysis, microbial attack and common marine chemicals (oil, fuel, hydraulic fluid). This ensures a long service life even in the most abrasive seabed environments.

Well suited to:

High-power subsea thrusters, compressors and hydraulic pump units

Subsea transformer and rectifier feeders

ROV/AUV power-only tethers requiring higher current capacity

Subsea power links for offshore wind farms and tidal energy

Heavy-duty power feed-throughs on vessels and submarines with watertight bulkhead penetrations

Any subsea application requiring power-only multicore AC/DC transmission (up to 25 A per core) without signal conductors, under severe marine conditions and without mechanical tension requirements

The cable is dedicated to high-current power transmission under high water pressure without separate signal conductors. It is a suitable choice for marine engineering, subsea power distribution, underwater propulsion and offshore renewable energy.
