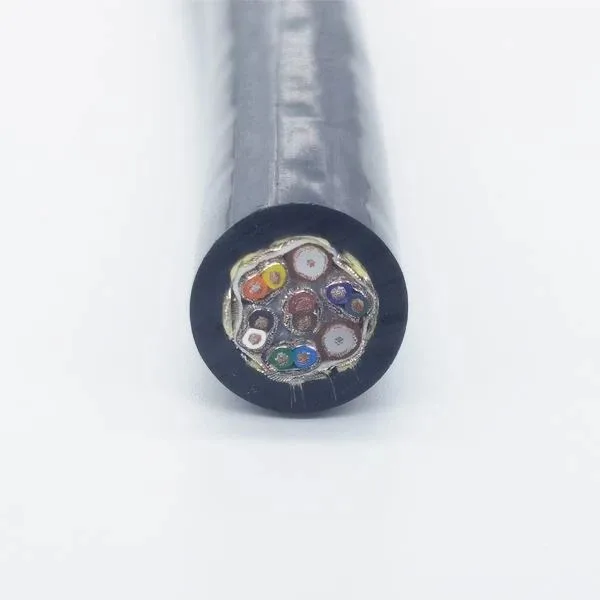

Underwater TPU Umbilical Cable – 2×75 Ω Coax + 5×2×0.2 mm² (24AWG), OD 11.8 mm

Name: Underwater TPU Umbilical Cable – 2×75 Ω Coax + 5×2×0.2 mm² (24AWG), OD 11.8 mm
Brand: PAIDE

Underwater Power Cables · Marine & Subsea

2-core 75 Ω coax plus five 0.2 mm² (24AWG) twisted pairs in a TPU umbilical for underwater signal and radio transmission; OD 11.8 mm.

Request pricing → Email engineering

Built to project order: conductor cross-section and core count, shield type, sheath colour, length and print legend can all be adapted to the working conditions; technical parameters are subject to the specification document confirmed by both parties.

Product introduction

Applications:

Underwater signal transmission and underwater radio transmission.

Construction:

- 2-core 75 Ω coaxial

- 5 twisted pairs 0.2 mm² (24AWG)

Conductor: oxygen-free copper strands

Insulation: polyethylene

Shield: aluminium foil / tinned copper braid (individual / overall)

Strength member: Kevlar

Outer sheath: TPU

Colour: black

Outer diameter: 11.8 mm

Temperature range: fixed installation -40 °C to +90 °C, mobile installation -30 °C to +90 °C

Features: good watertightness, acid and alkali resistance, UV resistance and resistance to tearing; high reliability under extreme conditions and a long cable life that helps reduce equipment downtime.

If you cannot find the model you need, please contact us at any time.
