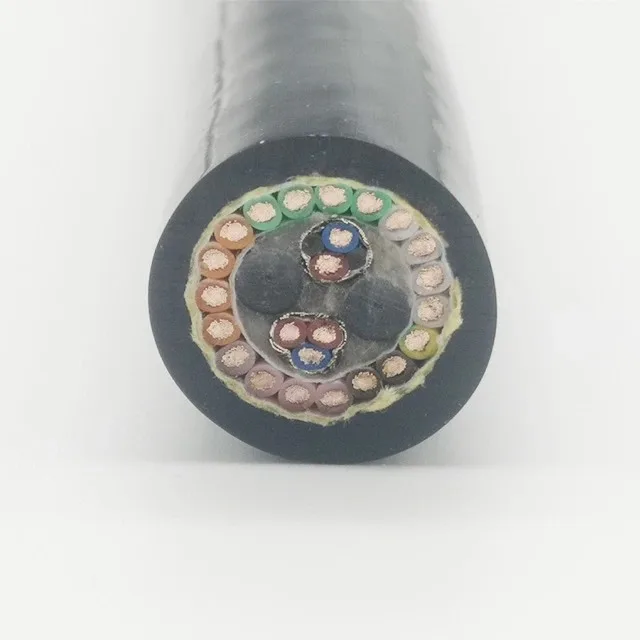

Underwater Umbilical Cable, 1-60 Cores, PE/TPEE/FEP Insulation, PUR Sheath, 100-2000 kg
Underwater Power Cables · Marine & Subsea
Subsea umbilical from 1 to 60 cores, PE, TPEE or FEP insulation, optional RG59/RG6 coaxial, PUR sheath, 300/500 V and 100-2000 kg tensile strength.
Custom manufacturing is available for each project: conductor cross-section and core count, shielding type, sheath colour, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.
Product introduction
For underwater applications.
Specification: 1-60 cores.
Core insulation: PE/TPEE/FEP
Coaxial: RG59/RG6 etc.
Colour: as required
Sheath: PUR
Tensile strength: 100 kg-2000 kg (or as required)
Temperature range: -30 °C to 105 °C
Voltage: 300/500 V
Properties: oil resistant, flame retardant, hydrolysis resistant, anti-bacterial, UV resistant
