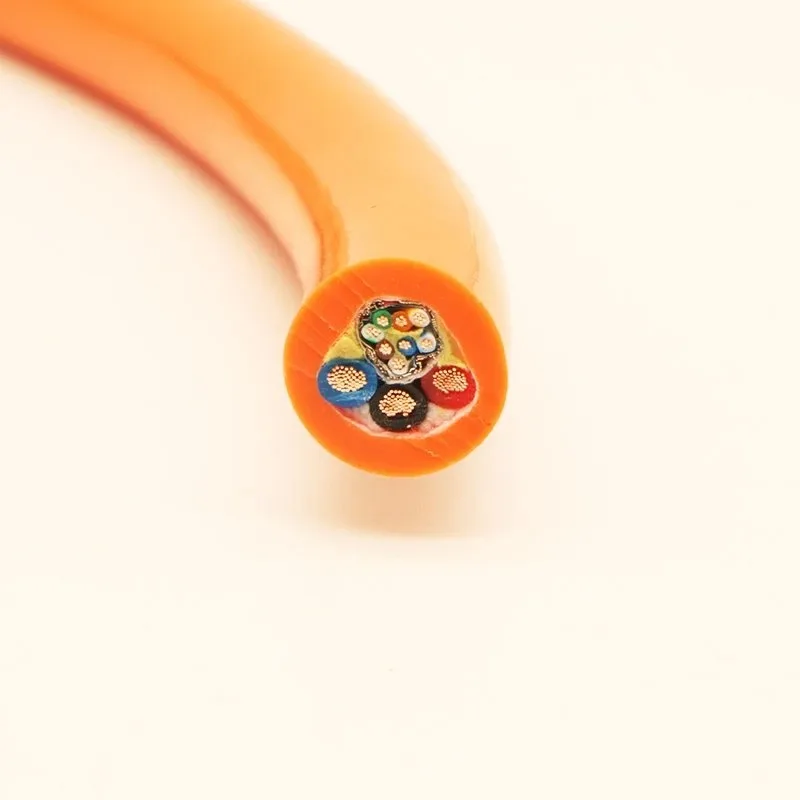

Waterproof Hybrid Cable Power + CAT5E 3×1.5 mm² + STP

Name: Waterproof Hybrid Cable Power + CAT5E 3×1.5 mm² + STP
Brand: PAIDE

Underwater Power Cables · Marine & Subsea

Watertight torque-balanced hybrid cable with 3 × 16AWG power conductors and an STP CAT5E link, aramid strength member and 11.5 mm PUR sheath.

Request pricing → Email engineering

Customisation available per project: conductor cross-section and core count, shielding type, sheath colour, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product overview

PAIDEKABLE supplies highly watertight, torque-balanced multi-core hybrid cables for ships, offshore oil platforms and deep-sea resource exploration, and for underwater robots that carry both data and power, whether in fixed or mobile systems, that is, when the robot is towed through the water above the seabed.

Construction:

- STP CAT5E (4*2*26AWG)

- 3 conductors 16AWG (1.5 mm²)

Conductor: oxygen-free copper strands

Insulation: polyethylene

Wrapping: non-woven fabric

Shielding: tinned copper braid and aluminium foil

Strength member: aramid fibre fillers (100 kg)

Outer sheath: PUR

Colour: orange

Outer diameter: 11.5 ± 0.5 mm

This watertight cable is an abrasion-resistant cable for a range of outdoor environments, used for power supply between outdoor and indoor locations, and between underwater and onshore equipment.

The orange cable is made from selected materials and designed for use in extreme weather conditions. In undisturbed installations it offers a long expected service life; where replacement is needed, this is usually the result of physical damage rather than wear.

The outer sheath is made of highly abrasion-resistant PU (polyurethane) and encloses the insulated conductors. This construction makes the cable very robust and protects the copper from wear.
