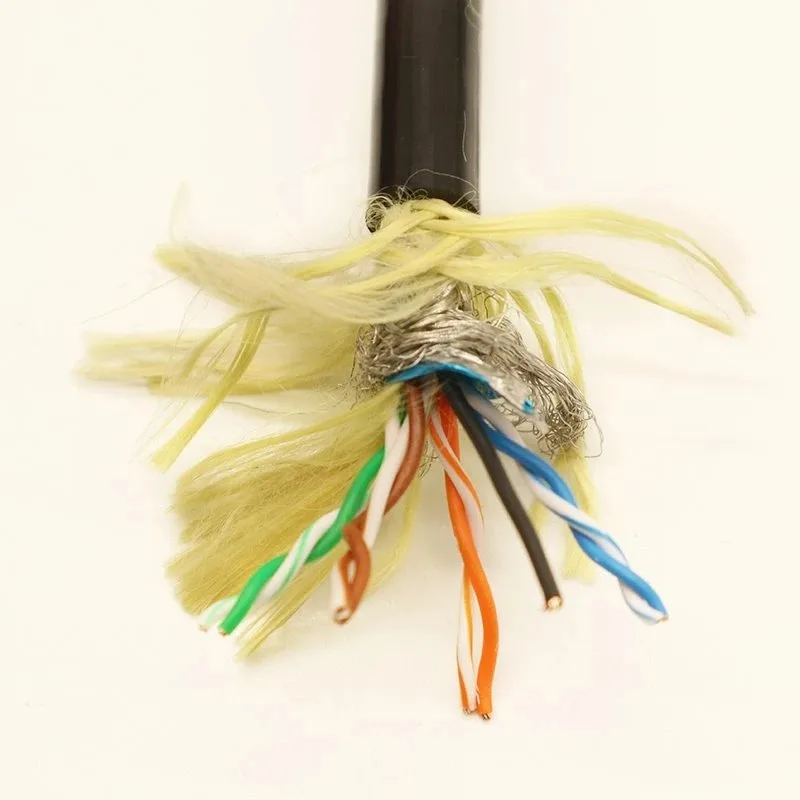

Watertight Underwater Signal Cable 4×2×24AWG + 1×24AWG 7.0mm

Name: Watertight Underwater Signal Cable 4×2×24AWG + 1×24AWG 7.0mm
Brand: PAIDE
SKU: On request

Underwater Power Cables · Marine & Subsea

On request

Waterproof signal cable with 4 twisted pairs 24AWG plus 1 control core 24AWG, foil and tinned copper overall shield, 7.0mm PUR jacket, -30℃~105℃.

Model

On request

Construction

4×2×24AWG + 1×24AWG 7.0mm

Request pricing → Email engineering

Customised to project: conductor size and core count, shield type, jacket colour, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product introduction

Application:

Power connection and communication for underwater equipment.

Cable construction:

- 4 twisted pairs 24AWG (0.2mm²)

- 1 core 24AWG

Conductor: finely stranded oxygen-free copper to VDE0295 CLASS6 (tinned copper available)

Insulation: polyethylene

Shield: aluminium foil + tinned copper wire braid (coverage above 85%)

Wrapping: non-woven tape

Outer jacket: PUR

Jacket color: black

Diameter: 7.0mm

Temperature range: -30℃~105℃

Properties: oil resistance, flame retardancy, hydrolysis resistance, resistance to bacteria and UV.

The cable has 4 twisted pairs for signal transmission and 1 control core, with an overall shield of aluminium foil and tinned copper braid that protects the signal from external interference. It offers high strength, tensile and abrasion resistance, and resistance to acid and alkali corrosion. The underwater communication cable can be dragged while permanently immersed in seawater, sewage or fresh water.
