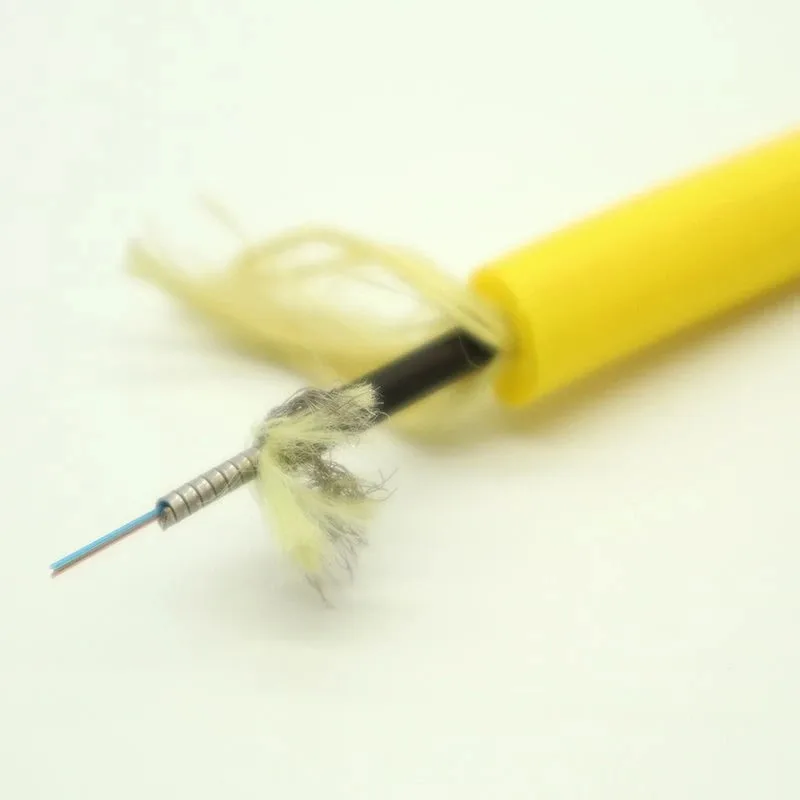

PDK81600-4SMF Floating Fibre Cable 150kg Armoured 8.2mm

Name: PDK81600-4SMF Floating Fibre Cable 150kg Armoured 8.2mm
Brand: PAIDE
SKU: PDK81600-4SMF-150KG

Watertight Optoelectric Cables · Marine & Subsea

PDK81600-4SMF-150KG

Floating four-fibre cable with steel spiral armour and PVC sheath, 150kg Kevlar braid, PUR foam jacket, 8.2mm OD, rated to 500m depth.

Model

PDK81600-4SMF-150KG

Tensile strength

150 kg

Request pricing → Email engineering

Customised to project: conductor size and core count, shield type, jacket colour, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product introduction

The cable uses a buoyant construction. It is lightweight and intended for underwater equipment. When towed down with the equipment during a dive it effectively avoids the problems caused by the excessive sinking of conventional underwater cables.

Model: PDK81600-4SMF-150KG

Cable construction:

- 4 SM fibres

Protection: steel spiral armour & PVC sheath

Strength member: Kevlar braid (150kg)

Inner jacket: PUR foam

Outer jacket: PUR

Outer jacket color: yellow

Temperature range: -30℃~90℃

Outer diameter: 8.2mm

Depth rating: 500m

Properties: oil resistance, flame retardancy, hydrolysis resistance, resistance to bacteria and UV.

The subsea ROV buoyant cable is a high-performance tether designed for remotely operated vehicles and other subsea applications. It is lightweight, strong and optimised for transport. Breaking strength is customised to the vehicle's requirements and water-blocking fibres are embedded to seal any leak.

If you cannot find the model you need, please contact us.
