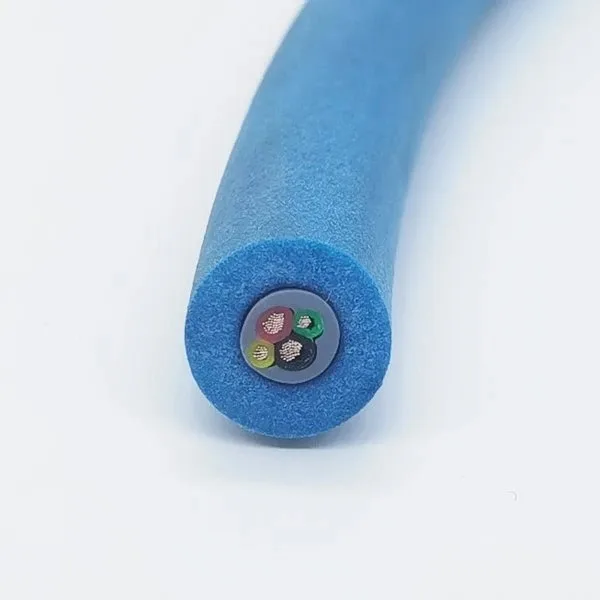

Pool Cleaning Robot Tether, 2×2×20AWG + 2×24AWG, Foamed PUR, 10.6mm
Zero-Buoyancy Cables · Marine & Subsea
Buoyant pool robot tether with two 20AWG pairs and two 24AWG cores, PE insulation, TPE inner sheath and foamed PUR outer sheath, 10.6mm OD.
Supports project-specific customisation: conductor cross-section and core count, shielding type, sheath colour, length and print legend can be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.
Product introduction
Application:
Pool cleaning robots.
Cable construction:
- 2 pairs × 20AWG (0.5mm²)
- 2 cores × 24AWG (0.2mm²)
Insulation: polyethylene
Inner sheath: TPE (pressure extrusion)
Outer sheath: PUR foam
Outer sheath colour: blue
Outer diameter: 10.6mm
Min. bending radius: 10D
Temperature range: -40℃~90℃
Features: oil resistant, flame retardant, hydrolysis resistant, anti-bacterial, UV resistant
Buoyant underwater cables are a typical cable programme for us. Please contact us if you cannot find the type you need.
