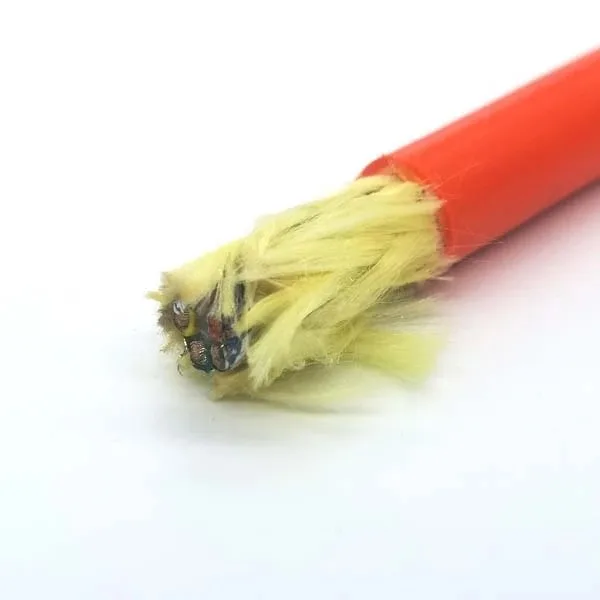

Pipeline Robot Cable, 2×0.75 mm² + 2×0.5 mm² + 4×2×0.14 mm², 250 kg

Name: Pipeline Robot Cable, 2×0.75 mm² + 2×0.5 mm² + 4×2×0.14 mm², 250 kg
Brand: PAIDE

Pipeline Inspection Robot Cables · Industrial Automation

Pipeline robot cable with 2×0.75 mm², 2×0.5 mm² and four 0.14 mm² pairs, PE insulation, TPU sheath, 250 kg Kevlar braid, 10.2 mm OD.

Request pricing → Email engineering

Project-specific customisation is available: conductor cross-section and core count, shield type, sheath colour, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product introduction

PAIDE develops high-quality pipeline robot cables (also called pipe inspection cables and sewer inspection cables) that provide traction, lighting, control, television camera, signal transmission and power to pipeline crawling robots. They are widely used in downhole survey and monitoring, underground geophysical prospecting, mining and exploration. They are particularly suited to power supply and zenith angle and azimuth signal transmission for equipment in geological drilling, downhole lighting, hydropower, coal and engineering departments.

Construction:

- 2 cores 0.75 mm²

- 2 cores 0.5 mm²

- 4 pairs 0.14 mm²

Conductor: oxygen-free copper stranded wire

Insulation material: PE

Sheath material: TPU

Outer sheath colour: orange

Tensile strength: 250 kg (Kevlar braid)

Shield: aluminium foil plus drain wire (overall shield)

Outer diameter: 10.2 mm

Temperature range: fixed installation -40 °C to +90 °C, moving installation -30 °C to +90 °C
