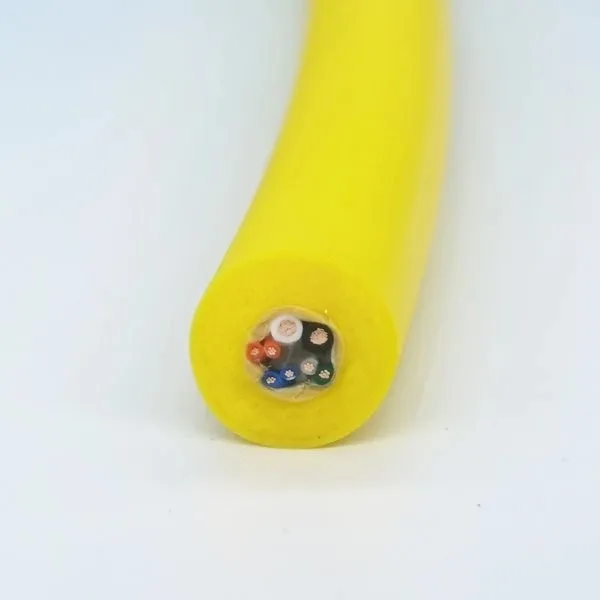

Neutrally Buoyant ROV Cable 2×20AWG+3×2×24AWG 200 kg

Name: Neutrally Buoyant ROV Cable 2×20AWG+3×2×24AWG 200 kg
Brand: PAIDE

Zero-Buoyancy Cables · Marine & Subsea

Neutrally buoyant ROV cable with 2×20AWG power and 3×2×24AWG signal pairs, 200 kg aramid braid, foam PUR inner sheath, 11.3 mm diameter.

Construction

2×20AWG+3×2×24AWG 200 kg

Tensile strength

200 kg

Request pricing → Email engineering

Custom engineering is available: conductor cross-section and core count, shielding type, sheath color, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product overview

Applications:

Mainly cabled ROV equipment, subsea vehicles, power supply to subsea equipment and signal control of submerged equipment.

Product construction:

- 2 cores 20AWG (0.5 mm²) for power

- 3 pairs 24AWG (0.2 mm²) for signal transmission

Conductor: finely stranded oxygen-free copper, to VDE0295 CLASS6

Insulation: polyethylene

Insulation color: 20AWG - white/black

24AWG - orange/white-orange, blue/white-blue, green/white-green

Tensile layer: aramid braid (200 kg)

Wrapping: non-woven tape

Inner sheath: PUR foam

Outer sheath: PUR

Sheath color: yellow

Outer diameter: 11.3 mm

Temperature range: -30℃~105℃

Properties: oil resistant, flame retardant, hydrolysis resistant, antibacterial, UV resistant.

As marine resources are developed more widely, zero-buoyancy cables are used increasingly. Conventional water cables have a high density and sink into the water, which seriously affects the operation of subsea equipment, whereas a neutrally buoyant cable stays in the water without floating up or sinking and reduces its influence on the equipment in operation.

If you cannot find the model you need, please contact us at any time.
