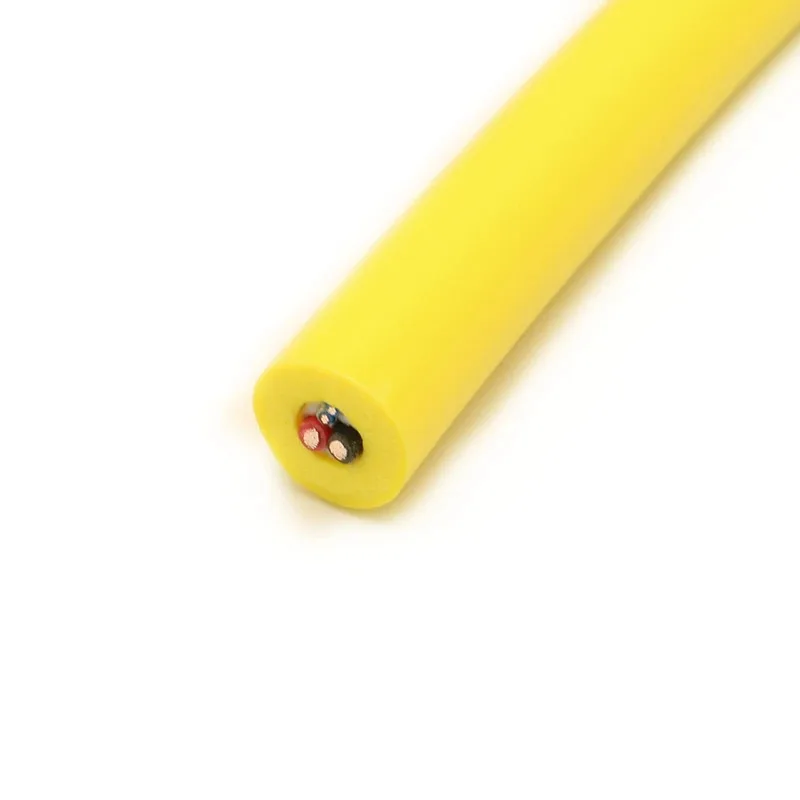

PDK81600-20.75+12*0.25 Floating Cable 100kg

Name: PDK81600-2*0.75+1*2*0.25 Floating Cable 100kg
Brand: PAIDE
SKU: PDK81600-2x0.75+AS1x2x0.25-100KG

Zero-Buoyancy Cables · Marine & Subsea

PDK81600-2x0.75+AS1x2x0.25-100KG

Floating ROV cable with 2×0.75mm² power cores and 1 pair of 0.25mm² signal, PUR foam inner jacket, 100kg Kevlar, 10.8mm OD, rated to 1000m.

Model

PDK81600-2x0.75+AS1x2x0.25-100KG

Tensile strength

100 kg

Request pricing → Email engineering

Customised to project: conductor size and core count, shield type, jacket colour, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product introduction

Application: ROV and AUV systems.

Model: PDK81600-2x0.75+AS1x2x0.25-100KG

Cable construction:

- 2 cores 0.75mm²

(19AWG)

- 1 pair 0.25mm²

(24AWG)

Insulation: polyethylene

Inner jacket: PUR foam

Outer jacket: PUR

Outer jacket color: orange

Strength member: Kevlar filler (100kg)

Outer diameter: 10.8mm

Temperature range: -30℃~105℃

Depth rating: 500-1000m

Properties: oil resistance, flame retardancy, hydrolysis resistance, resistance to bacteria and UV.

Underwater ROV cables are a typical product line for us. We can customise different sizes and constructions to each customer's requirements.
