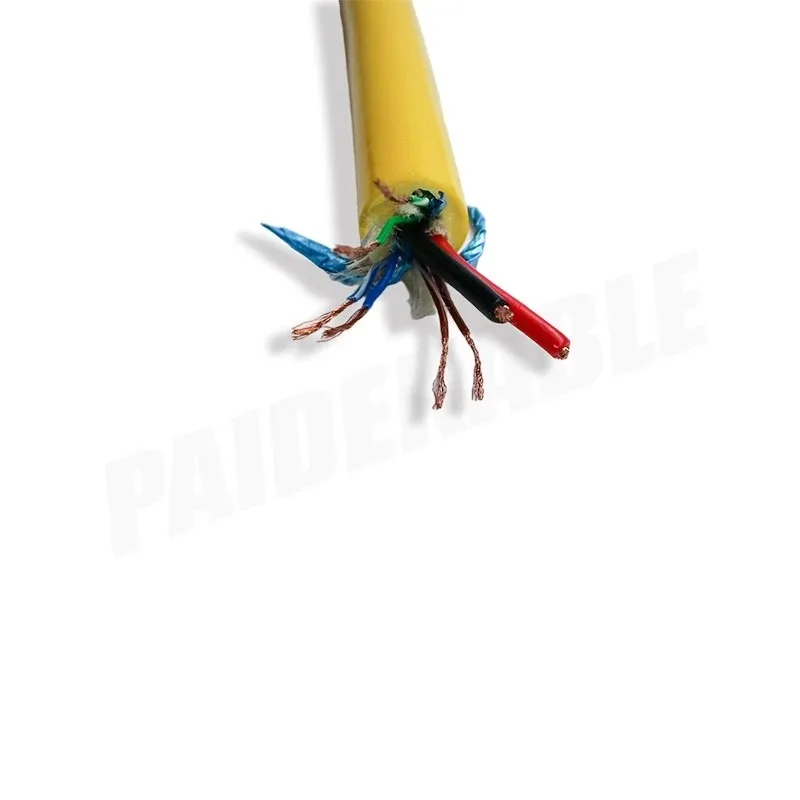

PDK81602 2x2.5 + 3x2x0.25 AS-300KG Neutrally Buoyant ROV Cable

Name: PDK81602 2x2.5 + 3x2x0.25 AS-300KG Neutrally Buoyant ROV Cable
Brand: PAIDE

Zero-Buoyancy Cables · Marine & Subsea

Neutrally buoyant ROV cable with 2x2.5 mm² power cores and three foil-shielded 0.25 mm² pairs, LCP strength member rated 300 kg, 500-1000 m depth.

Specification

Custom-built

Tensile strength

300 kg

Request pricing → Email engineering

Custom-built to project: conductor cross-section and core count, shielding type, sheath color, length and print marking can be adjusted to the working conditions; technical parameters are subject to the specification file confirmed by both parties.

Product introduction

Applications: ROV and AUV systems.

Model: PDK81602-2x2.5+3x2x0.25 AS-300KG

Cable construction:

- 2 cores × 2.5 mm²

- 3 pairs × 0.25 mm² (each pair aluminum foil shielded)

Insulation: polyethylene

Inner sheath: PUR foam

Outer sheath: PUR

Outer sheath color: yellow

Strength member: LCP filler (300 kg)

Outer diameter: 16.0 ±0.5 mm

Temperature range: -30 °C to 105 °C

Depth rating: 500-1000 m

Properties: oil resistant, flame retardant, hydrolysis resistant, anti-bacterial, UV resistant.

The subsea ROV cable is one of our typical cable products. We can customize different sizes and different types to each customer's requirements.
